AiM MyChron5 GPS Dash Logger for karting

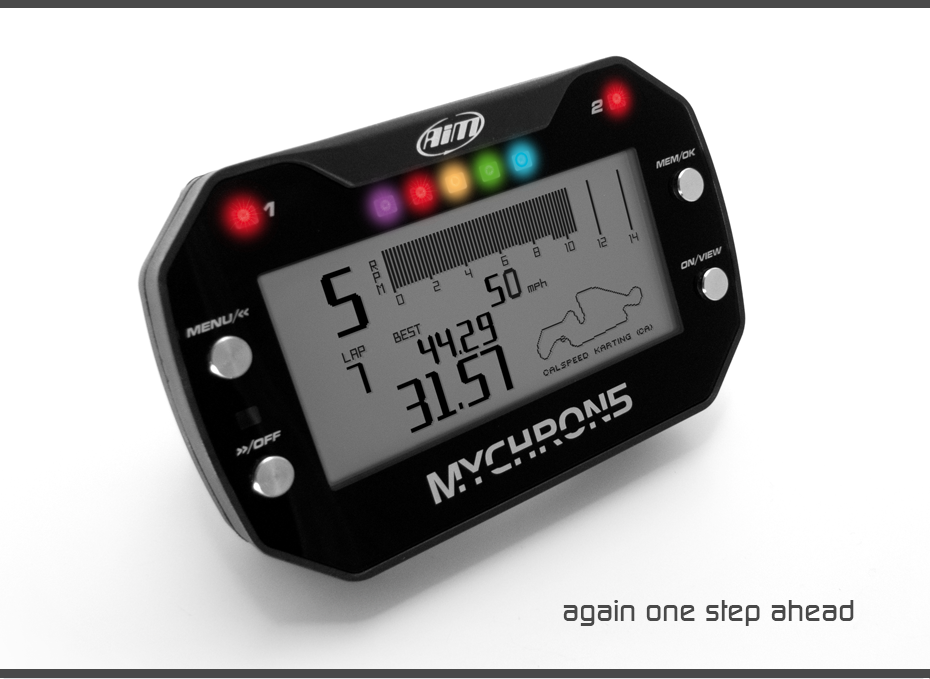

The AiM MyChron5 has a graphical display, which can show the rpm, speed, lap times, gear and temperature. Furthermore several display pages are free configurable and can be chosen over the metal buttons. For the illumination various colors can be chosen and the brightness is controlled over a light sensor.

Over the integrated GPS Module the speed can be shown on the display and later with further GPS channels, e.g. driven line, acceleration…. be analyzed on the PC. Over a rechargeable lithium battery, which can also be replaced, the MyChron5 can be used up to 10 hours without charging.

MyChron5 has two configurable RGB alarm-LEDs and 10 also free and depending on the selected gear configurable RGB shift-lights.

Technical data AiM MyChron5


RPM	Tapping inductive from the ignition cable Measuring range 0 up to 60.000 rpm	Tapping inductive from the ignition cable Measuring range 0 up to 60.000 rpm
Time measurement	Triggering over infrared, manual or GPS Lap times without limits, up to 5 Split times Measuring accuracy 1/100 sec.	Triggering over infrared, manual or GPS Lap times without limits, up to 5 Split times Measuring accuracy 1/100 sec.
Analogue channels	Only over MyChron Expansion	Only over MyChron Expansion
Speed	Detection over integrated GPS	Detection over integrated GPS
Gear indication	Calculated out of rpm and GPS-speed	Calculated out of rpm and GPS-speed
Connectors	1x Binder 711-3 \| 1x Binder 711-4 \| 1x Binder 711-5	1x Binder 711-7 \| 1x Binder 711-4 \| 1x Binder 711-5
Shift-lights	5 free configurable RGB LEDs for each gear free setable	5 free configurable RGB LEDs for each gear free setable
Additional functions	Displays the differnce to the fastest lap at the split times Predictive lap times WiFi Connection Light sensor for display illumination Free configurable display indication 2 RGB alarm lights, free configurable multicolored background illumination Gyroscope	Displays the differnce to the fastest lap at the split times Predictive lap times WiFi Connection Light sensor for display illumination Free configurable display indication 2 RGB alarm lights, free configurable multicolored background illumination Gyroscope
Data storage	Non-volatile 4 GB-storage	Non-volatile 4 GB-storage
Data transfer	WiFi 802.11	WiFi 802.11
Power supply	internal lithium battery (10 hours) optional over external 12V battery	internal lithium battery (10 hours) optional over external 12V battery
Updates	Software- and Firmware Updates for free over the internet	Software- and Firmware Updates for free over the internet
Admeasurements	Housing: 137 x 88 x 47 Display: 94,6 x 46,1	Housing: 137 x 88 x 47 Display: 94,6 x 46,1
Weight	340 gr.	340 gr.
Protection class	IP65	IP65

Special features AiM MyChron5


Housing The nylon housing lets your AiM MyChron5 look like new even after years and is not as delicate as one out of aluminum.	Software \| RaceStudio3 With RaceStudio3 the MyChron5 can be configured and the recorded data can be downloaded and analyzed.	Extendable Over the internal AiM CAN bus the MyChron5 can be at any time be extended, with for example Lambda, SmartyCamHD, MX Expansion,...	Connectors With the AiM MyChron5 we use the connector series 711 and 719. These connectors are very robust and reliable.

Alarm lights The two RGB alarm lights can be a set to either light up, flash slow or fast when reaching min. –or max.- value.	Shift-lights The 5 RGB shift-lights can either set for each gear or for all gears the same. For each LED an own color can be chosen.	Display On the graphical display various pages can be configured and indicated. The background illumination color is freely adjustable.	Handling The four metal buttons of the MyChron 5 enable an easy handling of the device. These can also be operated with gloves without any problems.

2 Temperatures On the AiM MyChron5 2T it is possible to connect a second temperature sensor over the Y-connection cable.	Data Recall Over the data recall you can see the most important measuring values directly after the run on the display.	GPS Module The GPS Module has been already built in with the AiM MyChron5. This eliminates the so far cable laying.	WiFi Connection Over WiFi it is possible to make a radio link between the PC and the MyChron5.

Functions AiM MyChron5

Alarm light 1

GPS Module

Shift lights

Alarm light 2

Temperature

Gyroscope

Nylon housing

Lithium battery

Light-sensor

Graphical display

Metal buttons

Lap time

RPM

Expansion

Mounting screw M8

Pictures AiM MyChron5

Expansion AiM MyChron5

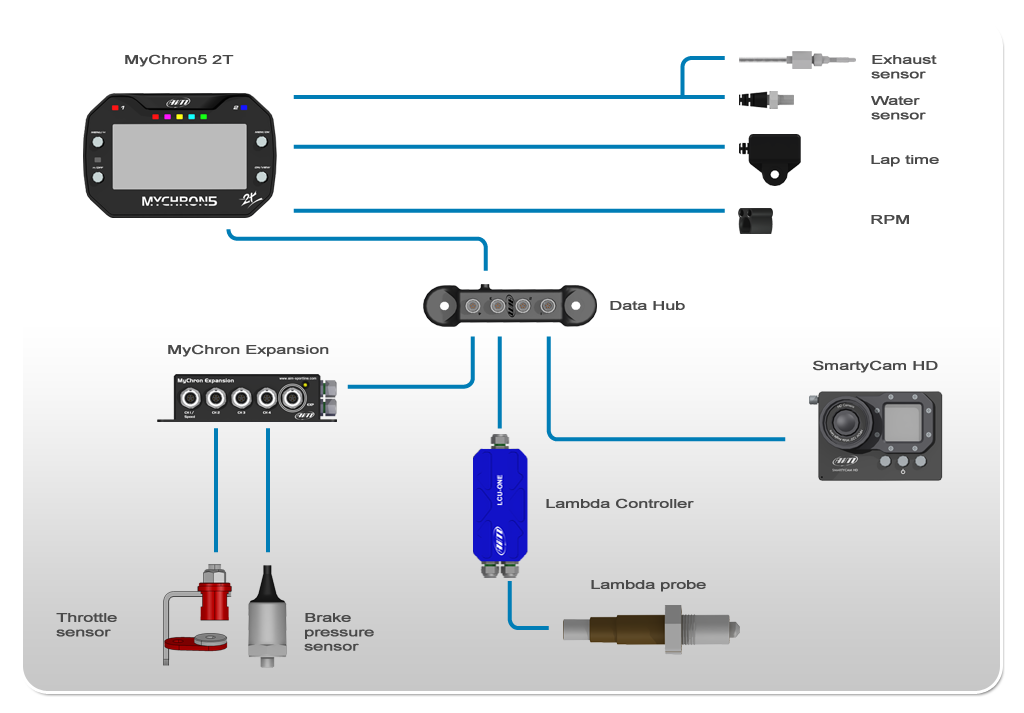

Over the internal AiM CAN bus the AiM MyChron5 can also be extended at any time. Through the right button you’ll get to a connection example.


MyChron Expansion	Lambda System	SmartyCam HD
Speed external 12V connection Throttle position Brake position Brake pressure Steering angle Water temperature	Lambda value Probe temperature AFR value	HD Video with Data Overlay Acceleration Gyroscope Lap times Position on the track
